Daytona Anima Engine 190cc
FS5

by DAYTONA
Sold out
$1,331.00
SKU AE88616

DAYTONA
Anima Engine 190cc FS5

Bolts onto Honda CRF50 & CRF70cc's.
Has been mounted on Honda ATC, CT70, Go-Karts, Powered Parachutes, ETC.

 ENGINE
Engine Type:  Air cooled 4-stroke SOHC 4 valve
Cylinder Arrangement:  Single cylinder, horizontally-mounted
Displacement:  187.2cc
Bore x Stroke:  62.0 x 62.0mm
Camshaft:  STD: #86878
Starting:  Kick (Primary kick type)
Lubrication System:  Wet sump
Clutch Type:  Wet, multi-plate 6-disc with new gear
Valve Size
IN:  24.5mm x 2
EX:  21.00mm x 2
Cam Chain:  94 Link silent chain
 POWER TRAIN
Primary Reduction Ratio:  67 / 18 (3.72)
Transmission Type:  5-Speed
Gear Ratio:
1st 34/14 (2.43)
2nd 26/15 (1.73)
3rd 24/18 (1.33)
4th 24/22 (1.09)
5th 22/24 (0.92)
Gear Shift Pattern:  1-N-2-3-4-5
 ELECTRICAL
Ignition System:  AC-CDI
Non-selectable CDI
Small magnet rotor
Generator System:  AC Magneto without lighting
Spark Plug:  ER9EH

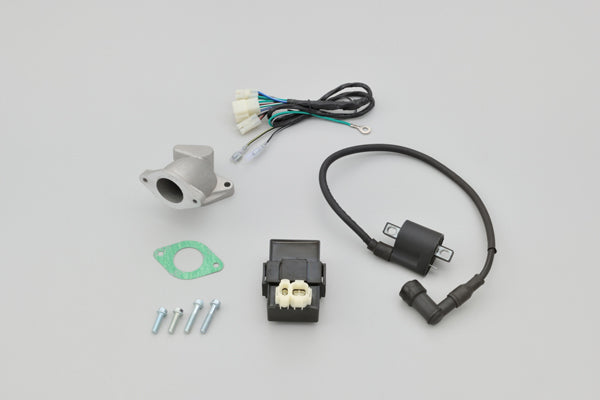

 ACCESSORIES
With
Aluminum intake manifold
Ignition coil and plug cap
Wire harness from engine
CDI
Without
Carburetor
Rubber manifold
Kick arm
Shift arm

*Because this item is used as race engine, there are no warranty coverage.
