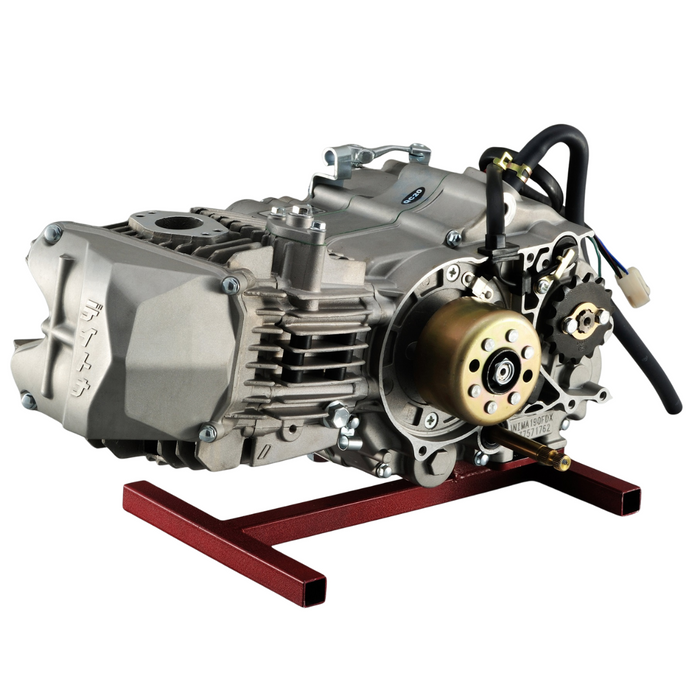

Daytona Anima Engine 190cc
FSM

by DAYTONA
Sold out
$1,288.00
SKU AE88018

DAYTONA
Anima Engine 190cc FSM

Bolts onto Honda CRF50 & CRF70cc's.
Has been mounted on Honda ATC, CT70, Go-Karts, Powered Parachutes, ETC.

 ENGINE
Engine Type:  Air cooled 4-stroke SOHC 4 valve
Cylinder Arrangement:  Single cylinder, horizontally-mounted
Displacement:  187.2cc
Bore x Stroke:  62.0 x 62.0mm
Camshaft:  STD: #86878
Starting:  Kick (Primary kick type) with decompression system
Lubrication System:  Wet sump
Clutch Type:  Wet, multi-plate 6-disc with new gear
Valve Size
IN:
24.5mm x 2
EX:  21.00mm x 2
Cam Chain:  94 Link silent chain
 POWER TRAIN
Primary Reduction Ratio:  67 / 18  (3.72)
Transmission Type:  4-Speed
Gear Ratio:
1st 34/13 (2.615)
2nd 26/15 (1.733)
3rd 26/20 (1.300)
4th 24/23 (1.043)
Gear Shift Pattern:  1-N-2-3-4
 ELECTRICAL
Ignition System:  AC-CDI
Non-Selectable CDI
Small Magnet Rotor
Generator System:  AC Magneto without lighting
Spark Plug:  ER9EH

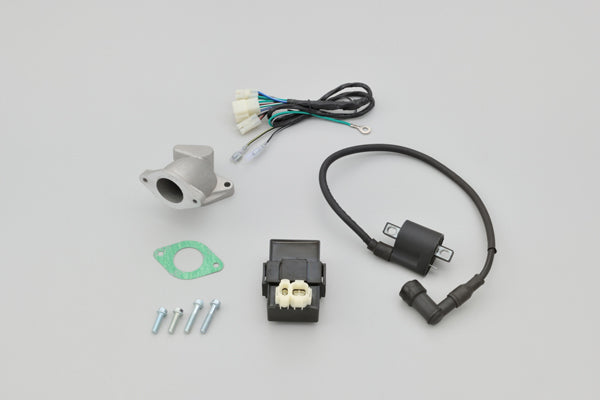

 ACCESSORIES
With:
Aluminum Intake Manifold
Ignition Coil and Plug Cap
Wire Harness from engine
CDI
Without:
Carburetor
Rubber Manifold
Kick Arm
Shift Arm

*Because this item is used as race engine, there are no warranty coverage.
